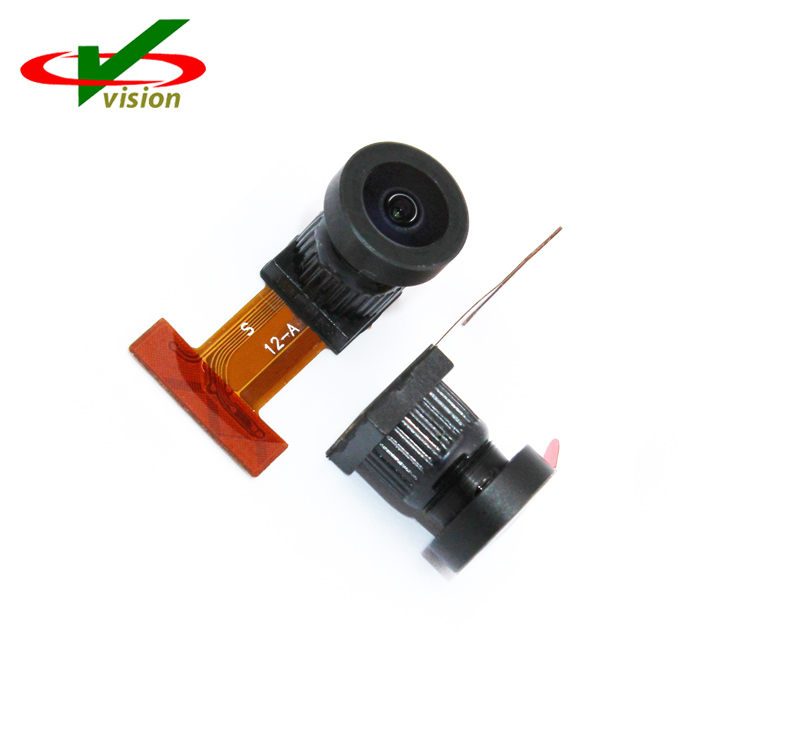

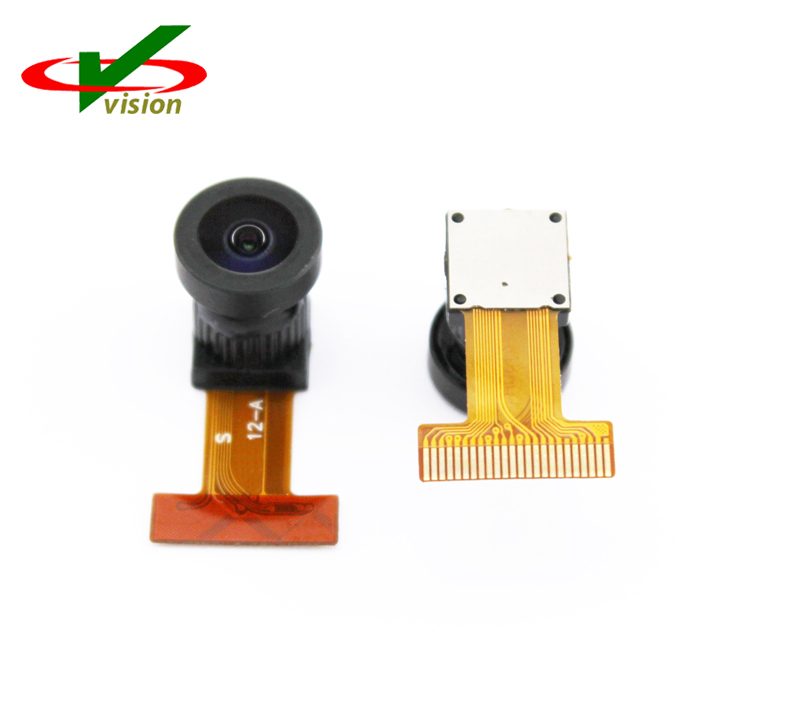

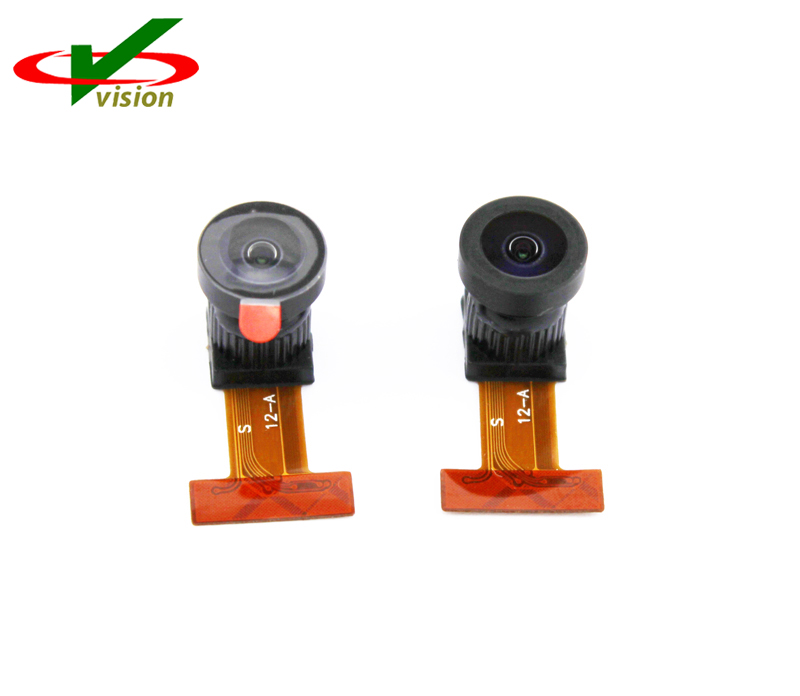

Mini CMOS OV9732 1MP Sensor Module

Mini CMOS OV9732 1MP Sensor Module Features

■Support for image sizes: full size (1280x720), VGA (640x480), 2x2RGB binning (640x360)

■Support for output formats: 10-bit RAW output with 1-lane MIPI and DVP

■On-chip phase lock loop (PLL)

■Programmable controls for frame rate, mirror and flip, gain/exposure, and windowing

■Support for horizontal and vertical sub-sampling

■Low power mode (LPM) function

■Capable of maintaining register values at software power down

■Standard SCCB interface

■GPIO tri-state configurability and programmable polarity

■FSIN

■Image quality control:defect pixel correction (DPC) and automatic black level calibration (ABLC)

Mini CMOS OV9732 1MP Sensor Module Key Specifications

1. Active array size: 1280x720

2. Power supply:

analog:3.1~3.45V(3.3V normal)

core: 1.7~1.9V(1.8V normal)

I/O: 1.7~1.9V(1.8V normal)

3. Temperature range:

operation: -30℃ to 85℃ junction temperature

stable image: 0℃ to 50℃ junction temperature

4. Output formats: 10-bit RAW RGB

5. Lens size: 1/4"

6. Input clock frequency: 6~27MHz

7. Maximum Image Transfer Rate: 30fps full resolution

8. Shutter: rolling shutter

9. Pixel size: 3μm x 3μm

10 Image area: 3888μm x 2208μm
