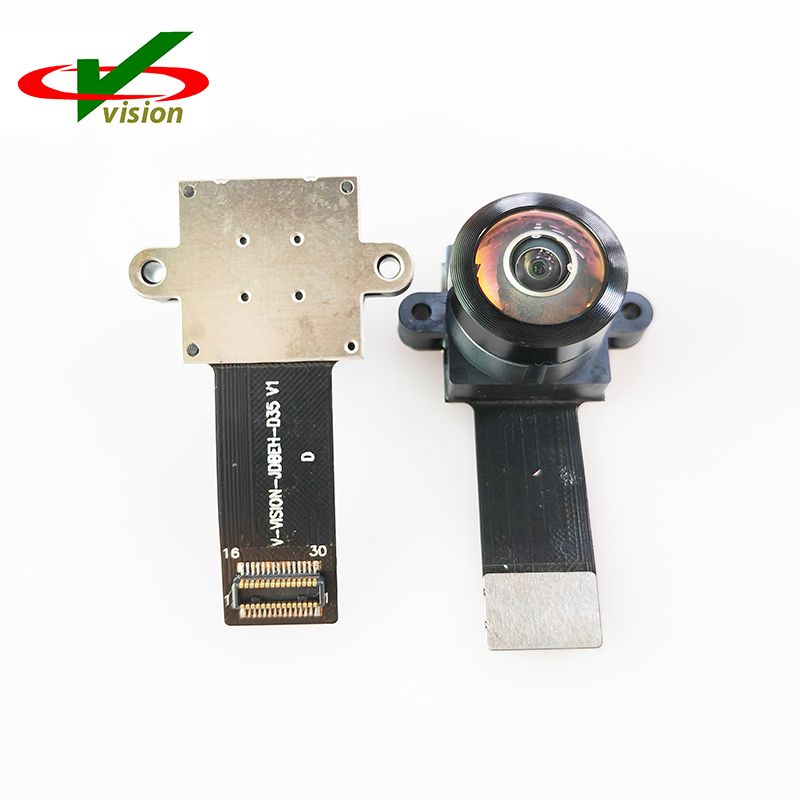

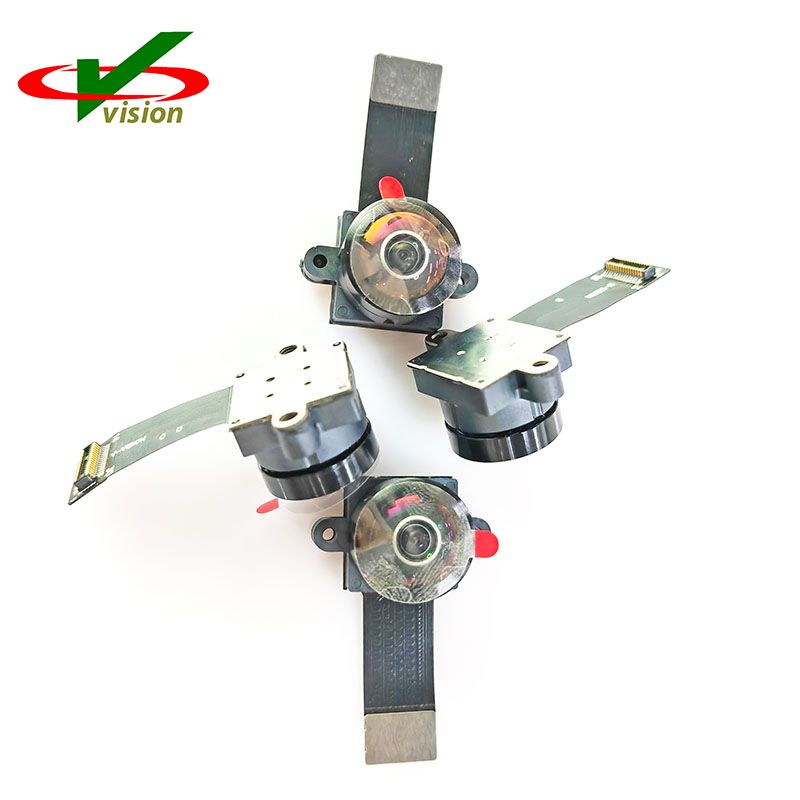

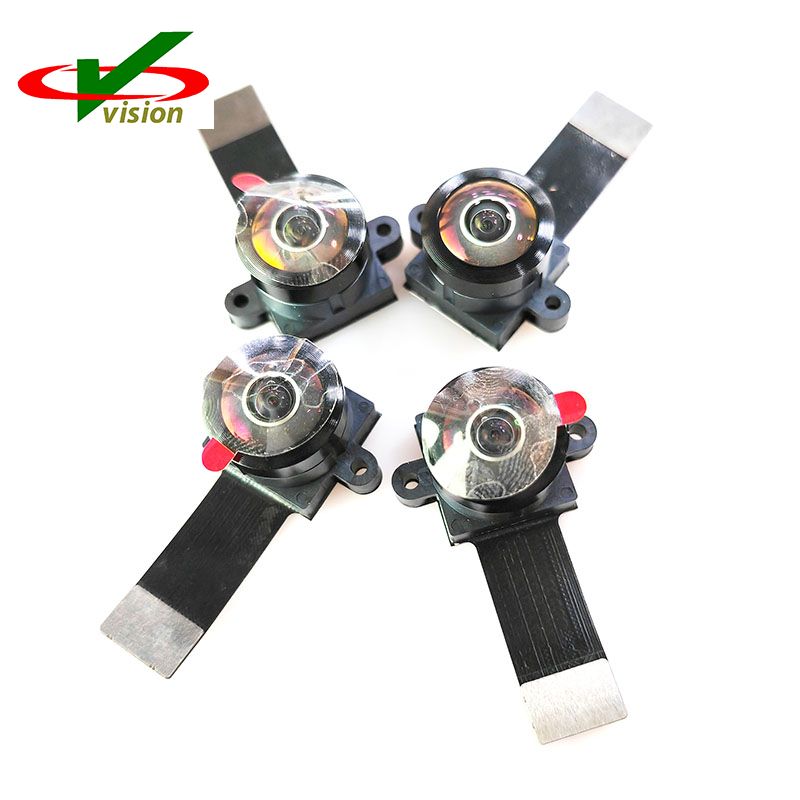

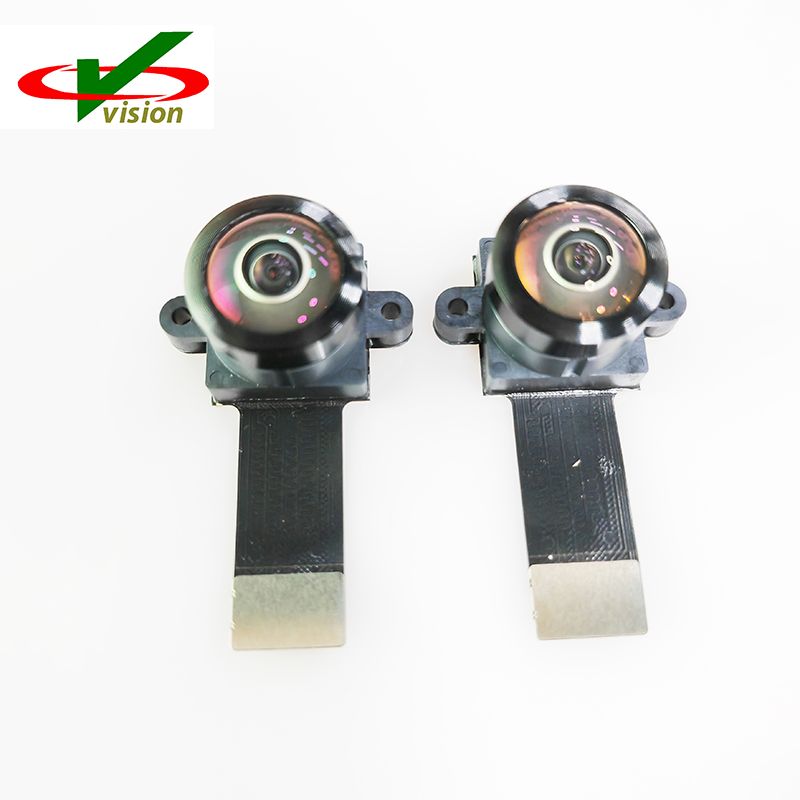

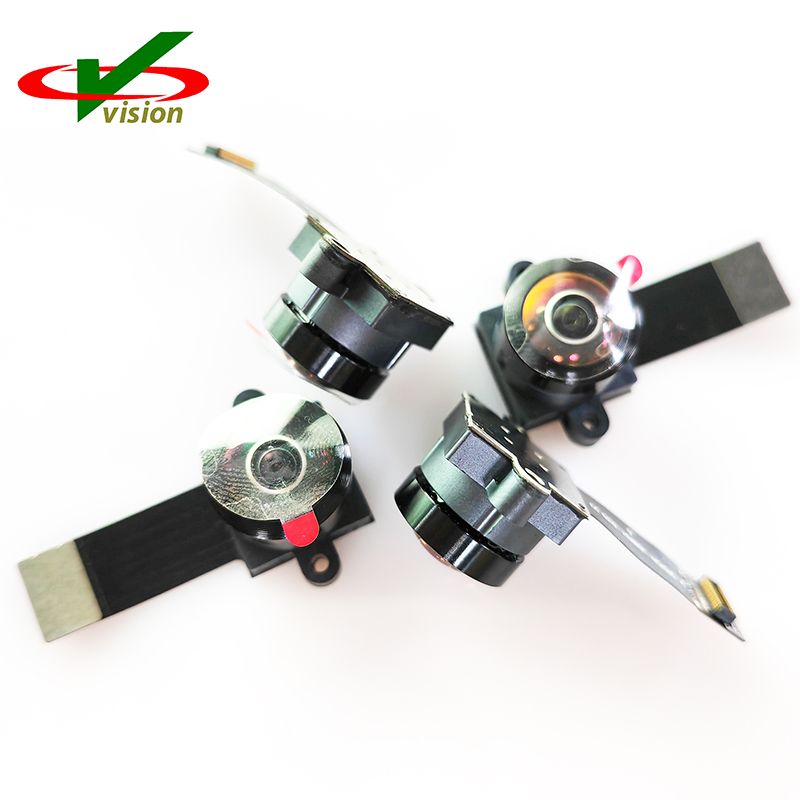

Global Shutter Camera Sensor Module AR0144

The Global Shutter Camera Sensor Module AR0144 is a 1/4-inch 1.0 Mp CMOS digital image sensor with an active-pixel array of 1280H x 800V.

Send Inquiry

Product Description

Global Shutter Camera Sensor Module AR0144 incorporates a new innovative global shutter pixel design optimized for accurate and fast capture of moving scenes. The sensor produces clear, low noise images in both low-light and bright scenes.

Global Shutter Camera Sensor Module AR0144 includes sophisticated camera functions such as auto exposure control, windowing, row skip mode, column-skip mode, pixel-binning and both video and single frame modes.

Global Shutter Camera Sensor Module AR0144 Features

• Superior low-light and IR performance

• HD video (720p60)

• 2-lane MIPI or Parallel data interface

• Automatic black Level Calibration (ABLC)

• Programmable control for Region Of Interest (ROI)

• Horizontal and vertical mirroring, windowing and pixel binning

• On chip auto exposure control for any programmable ROI

• 5x5 Statistics engine for any programmable ROI

• Flexible control for row and column skip mode

• On-chip slave or trigger mode for synchronization

• Built in strobe control

• On chip Phase Lock loop (PLL)

• On-chip slave or trigger mode for synchronization

Global Shutter Camera Sensor Module AR0144 Key Parameters

Parameter Typical Value
Optical format  1/4-inch (4.5 mm)
Active pixels  1280H x 800V = 1.0 Mp
Pixel size  3.0 m
Color filter array  RGB Bayer or Monochrome
Shutter type  Global shutter
Input clock range  6 – 64 MHz
Output pixel clock (maximum) 74.25 MHz
Output Serial MIPI, 2-Lane
Parallel 12-bit
Frame rate Full resolution 60 fps
720p 66 fps
Responsivity Monochrome 3.6 V/lux-sec
Color 3.1 V/lux-sec
Supply voltage I/O 1.8 or 2.8 V
Digital 1.2 V
Analog 2.8 V
Operating temperature –40°C to +85°C (ambient)
–40°C to +105°C (junction)
Package options 5.6 x 5.6 mm 69-ball CSP
Bare die

Global Shutter Camera Sensor Module AR0144 Applications

• Bar code scanner

• Gesture Recognition

• 3D scanning

• Positional tracking

• Iris scanning

• Augmented reality

• Virtual reality

• Biometrics

• Machine vision
