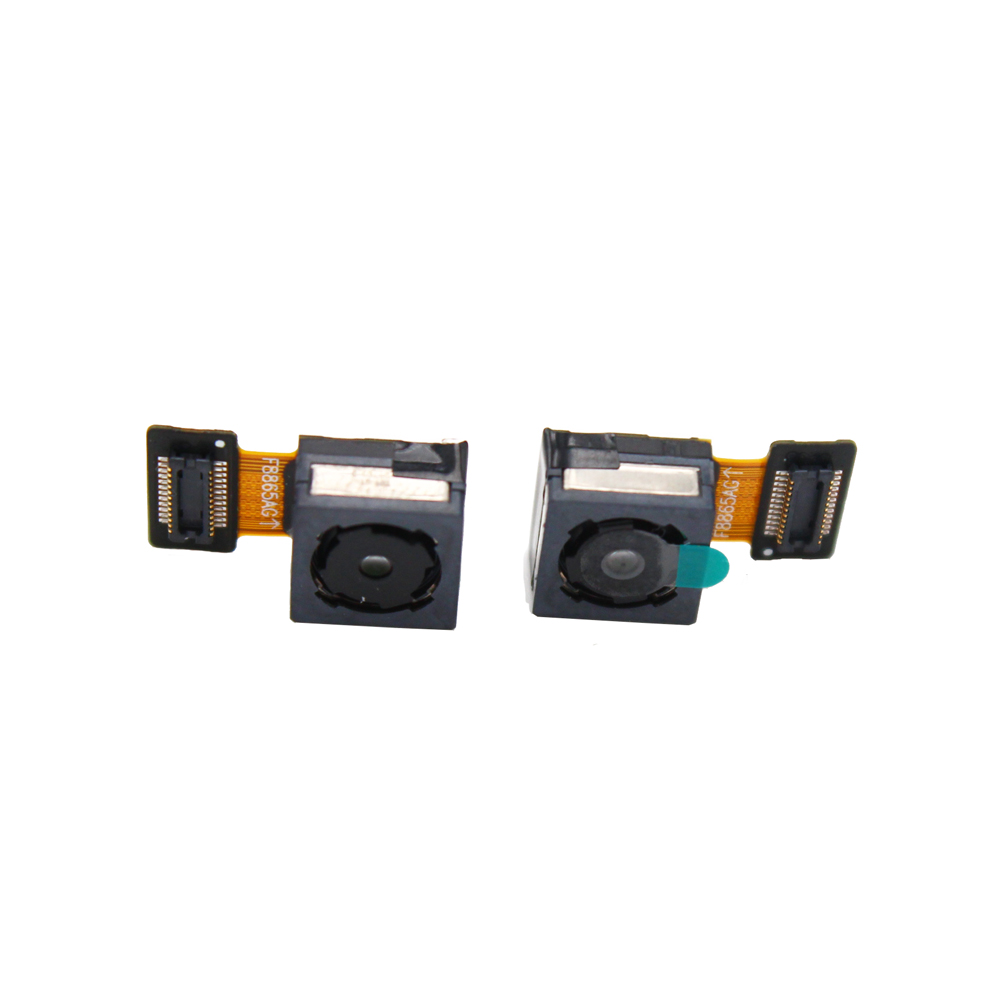

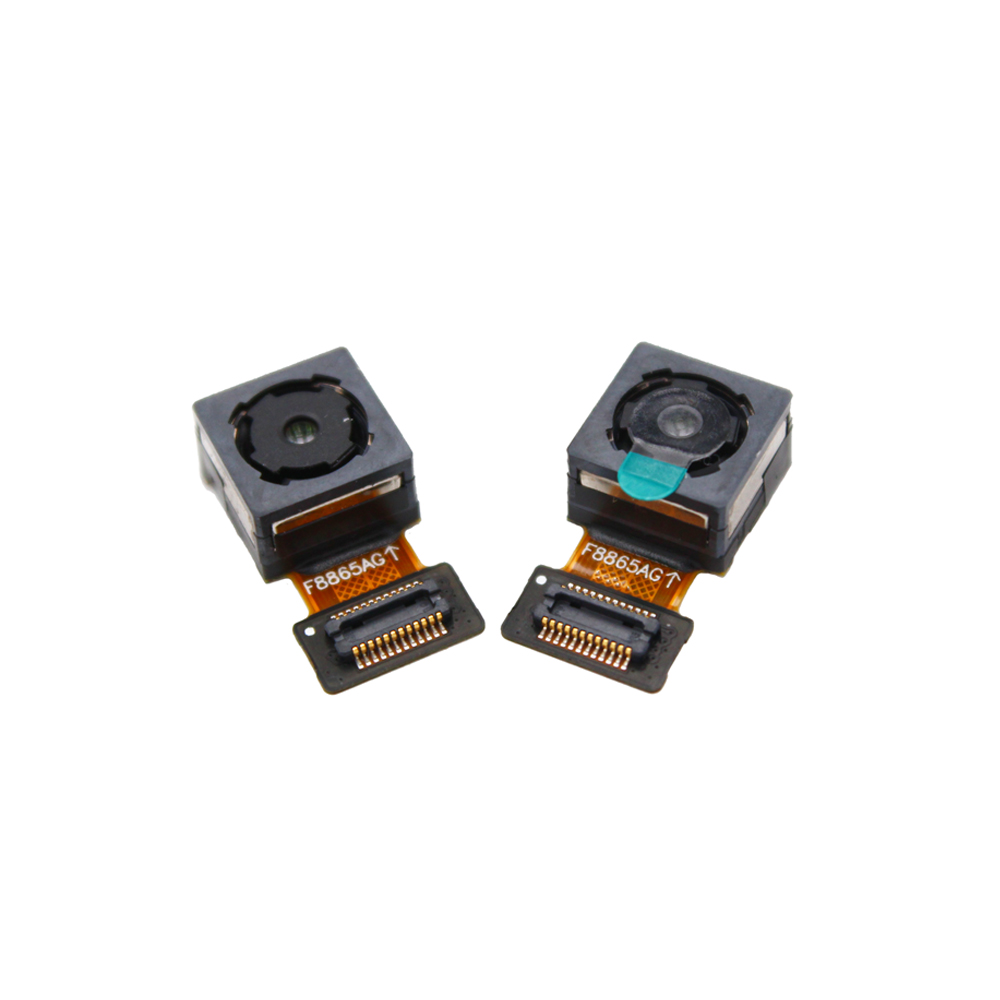

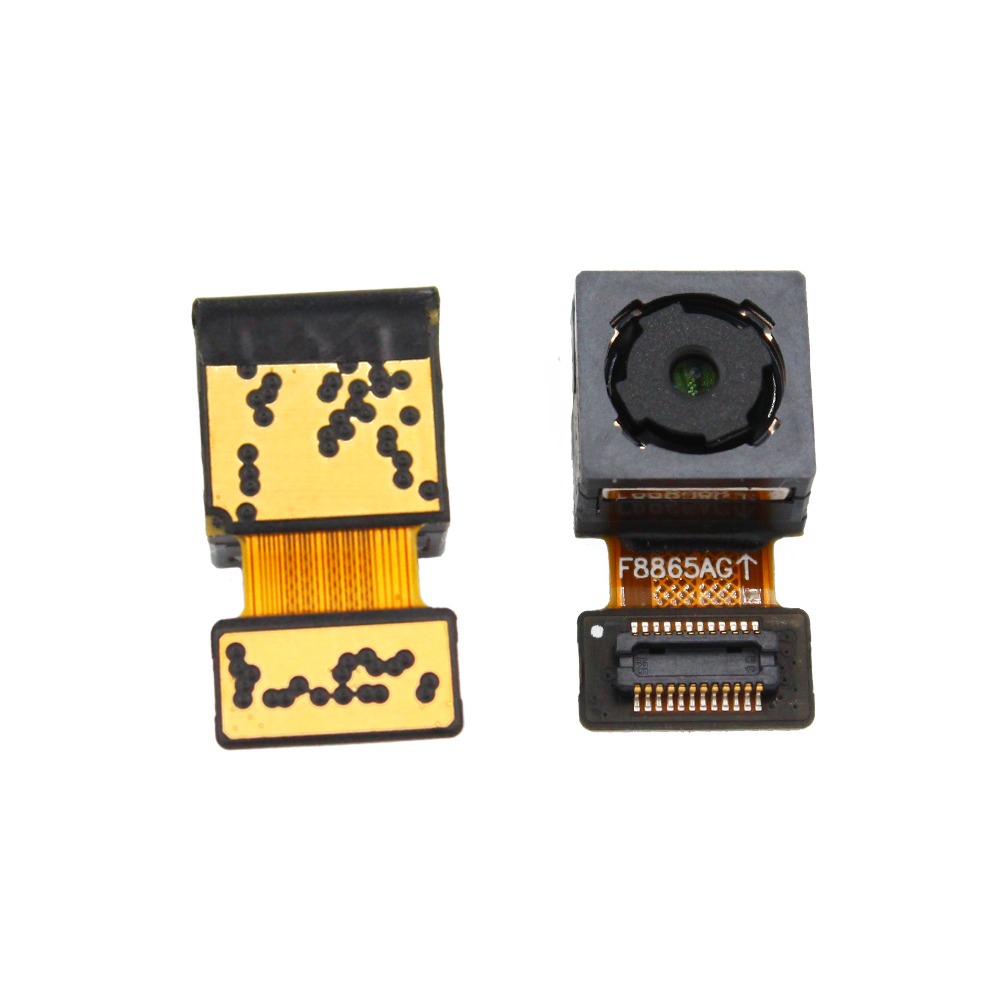

CMOS 8MP OV8865 MIPI Camera Module with Auto Focus

Built on advanced 1.12-micron pixel architecture, the extremely compact OV8856 offers industry-leading image quality and improved performance when compared with previous generation 8megapixel image sensors.

The Auto Focus OV8856 OV8865 Camera Module is one ofthe smallest 8megapixel sensors on the market, and is approximately 15 percent smaller than Omniviison's previous generation ov8856 images sensor.

The ov8856 can fit into a 6.5mmx6.5mm fixed focus module with a z-height of approximately 4mm.

CMOS 8MP OV8865 MIPI Camera Module with Auto Focus Lens Main Specifications(typical)

◆Active array size: 3264x2448

◆Power supply:

analog: 2.6~3.0V (2.8V nominal)

core: 1.14~1.26V (1.2V nominal)

I/O: 1.7~1.9V (1.8V)

◆ Power requirements:

active: TBD

standby: TBD

XSHUTDN: 0.3μW

◆ Temperature range:

operating: -30℃ to +85℃ junction temperature

stable image: 0℃ to +60℃ junction temperature

◆  Output interfaces: up to 4-lane MIPI serial output

◆ Output formats: 10-bit RGB RAW

◆ Lens size: 1/4"

◆ Input clock frequency: 6~27 MHz

◆ Maximum image transfer rate:

3264x2448: 30fps

3264x1836: 30fps

2112x1188: 60fps

1920x1080: 60fps

◆ Scan mode: progressive

◆ Pixel size: 1.12μm x1.12μm

◆ Image area: 3678.336μm x 2767.68μm

CMOS 8MP OV8865 MIPI Camera Module with Auto Focus

◆ cellular phones

◆ PC multimedia

◆ tablets
