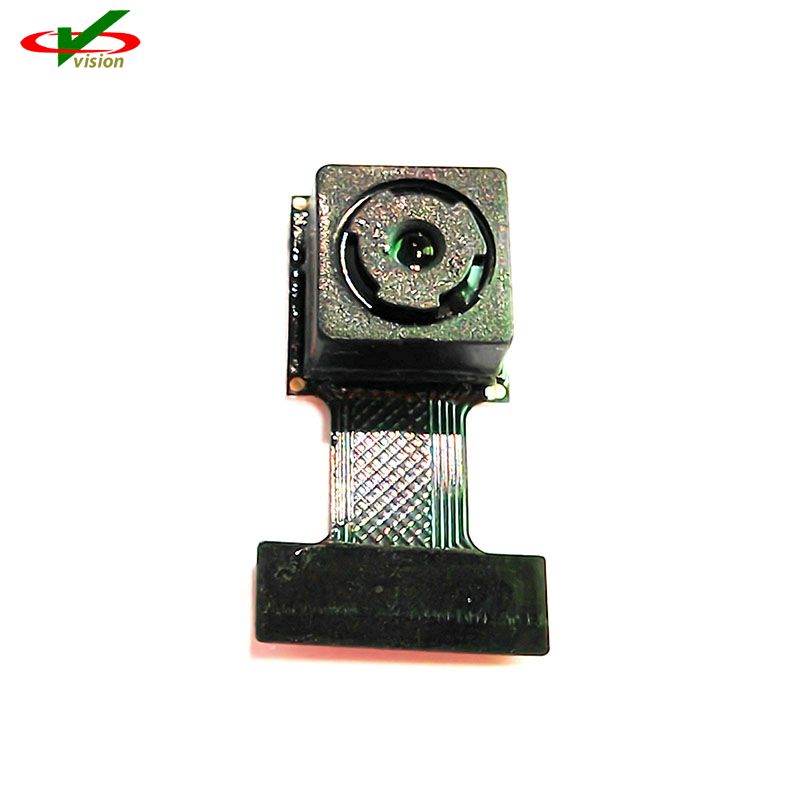

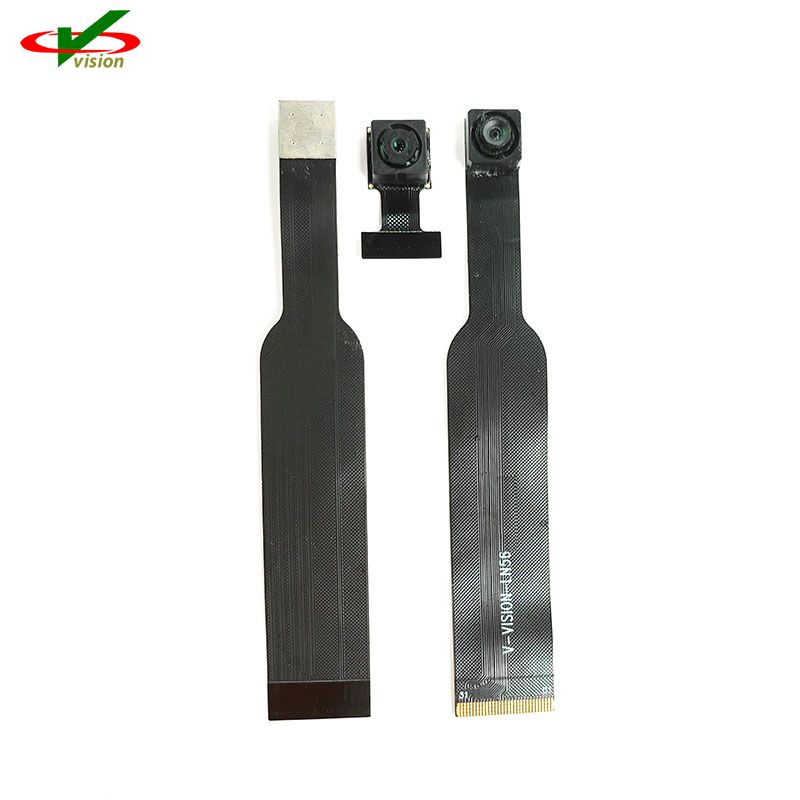

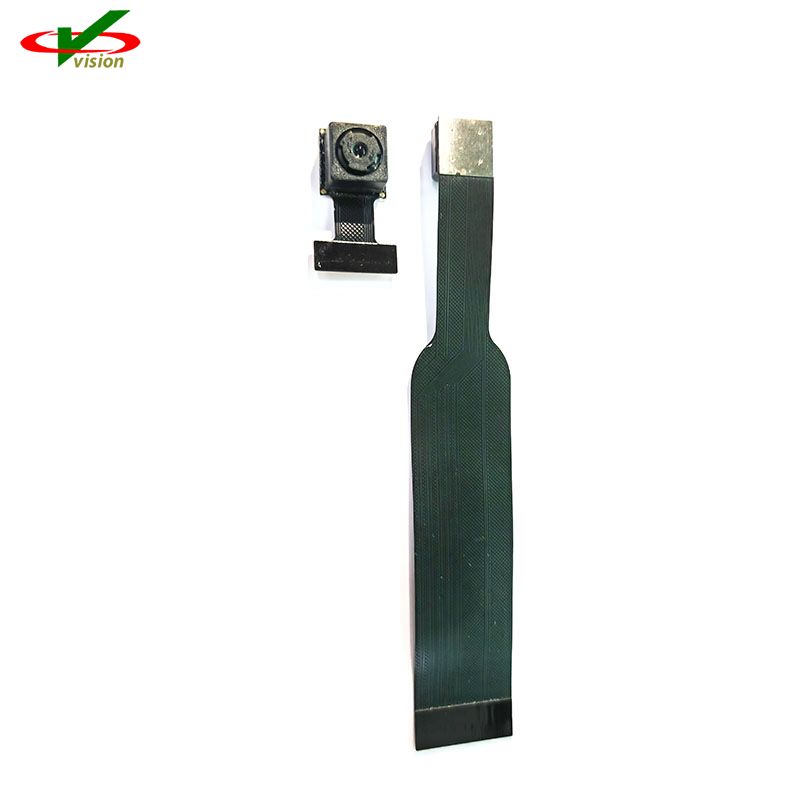

Auto Focus Fixed Focus OV8856 CMOS Sensor Camera Module

Built on advanced 1.12-micron pixel architecture, the extremely compact auto focus fixed focus OV8856 CMOS sensor camera module offers industry-leading image quality and improved performance when compared with previous generation 8megapixel image sensors.

Send Inquiry

Product Description

Omnivision's Auto Focus Fixed Focus OV8856 CMOS Sensor Camera Module is a new 1/4inch 8mega pixel PureCel sensor designed for front and rear facing camera applications in mainstream mobile devices.

The auto focus fixed focus OV8856 CMOS sensor camera module is one ofthe smallest 8megapixel sensors on the market, and is approximately 15 percent smaller than Omnivision's previous generation ov8856 images sensor. The ov8856 can fit into a 6.5mmx6.5mm fixed focus module with a z-height of approximately 4mm.

Auto Focus Fixed Focus OV8856 CMOS Sensor Camera Module Main Specifications


◆Active array size: 3264x2448

◆Power supply:

analog: 2.6~3.0V (2.8V nominal)

core: 1.14~1.26V (1.2V nominal)

I/O: 1.7~1.9V (1.8V)

◆ Power requirements:

active: TBD

standby: TBD

XSHUTDN: 0.3μW

◆ Temperature range:

operating: -30℃ to +85℃ junction temperature

stable image: 0℃ to +60℃ junction temperature

◆  Output interfaces: up to 4-lane MIPI serial output

◆ Output formats: 10-bit RGB RAW


◆ Lens size: 1/4"

◆ Input clock frequency: 6~27 MHz

◆ Maximum image transfer rate:

3264x2448: 30fps

3264x1836: 30fps

2112x1188: 60fps

1920x1080: 60fps

◆ Scan mode: progressive

◆ Pixel size: 1.12μm x1.12μm

◆ Image area: 3678.336μm x 2767.68μm

Omnivision Auto Focus Fixed Focus OV8856 CMOS Sensor Camera Module Applications


◆ cellular phones

◆ PC multimedia

◆ tablets
