Active array size of 2Mega Pixel Camera Module is 1624x1212, ultra low power and low cost. It supports for images sizes: UXGA, SVGA, and 720p.
There're many 2mp sensor available for custom FPC camera module production. Including OV2643(1/4”) OV2710(1/2.7”) OV2718(1/2.9”), OV2655(1/5") GC2155(1/5") AR0230(1/2.7") GC2145(1/5") GC2023(1/2.7”), SC2045(1/3.6”) F22(1/2.7”) AR0234(1/2.6") MT9D111(1/3.2"), OG02B10(1/2.9") OS02G10(1/2.9") OS02K10(1/2.8") SC200AI(1/2.8") SC2210(1/1.8") SC2336(1/3"), IMX307(1/2.8") IMX462(1/2.8") IMX323(1/2.9") IMX290/291(1/2.8") IMX327(1/2.8").
ON Semiconductor's AR0230CS is a 1/2.7-inch CMOS digital image sensor with an active-pixel array of 1928Hx1088V. It captures images in either linear or high dynamic range modes, with a rolling-shutter readout.
sony IMX290 IMX290 Camera Sensors are 1/2.8inch 2-megapixel CMOS image sensor. The IMX290/291 sensor can match with high quality diferent FOV lenses for meeting your requiremets nicely. The IMX291LQR-C is a diagonal 6.46 mm (Type 1/2.8) CMOS active pixel type solid-state image sensor with a square pixel array and 2.13 M effective pixels. This chip operates with analog 2.9 V, digital 1.2 V, and interface 1.8 V triple power supply, and has low power consumption. High sensitivity, low dark current and no smear are achieved through the adoption of R, G and B primary color mosaic filters. This chip features an electronic shutter with variable charge-integration time. (Applications: Surveillan
sony IMX290 IMX290 Camera Sensors are 1/2.8inch 2-megapixel CMOS image sensor. The IMX291LQR-C is a diagonal 6.46 mm (Type 1/2.8) CMOS active pixel type solid-state image sensor with a square pixel array and 2.13 M effective pixels. This chip operates with analog 2.9 V, digital 1.2 V, and interface 1.8 V triple power supply, and has low power consumption. High sensitivity, low dark current and no smear are achieved through the adoption of R, G and B primary color mosaic filters. This chip features an electronic shutter with variable charge-integration time. (Applications: Surveillan

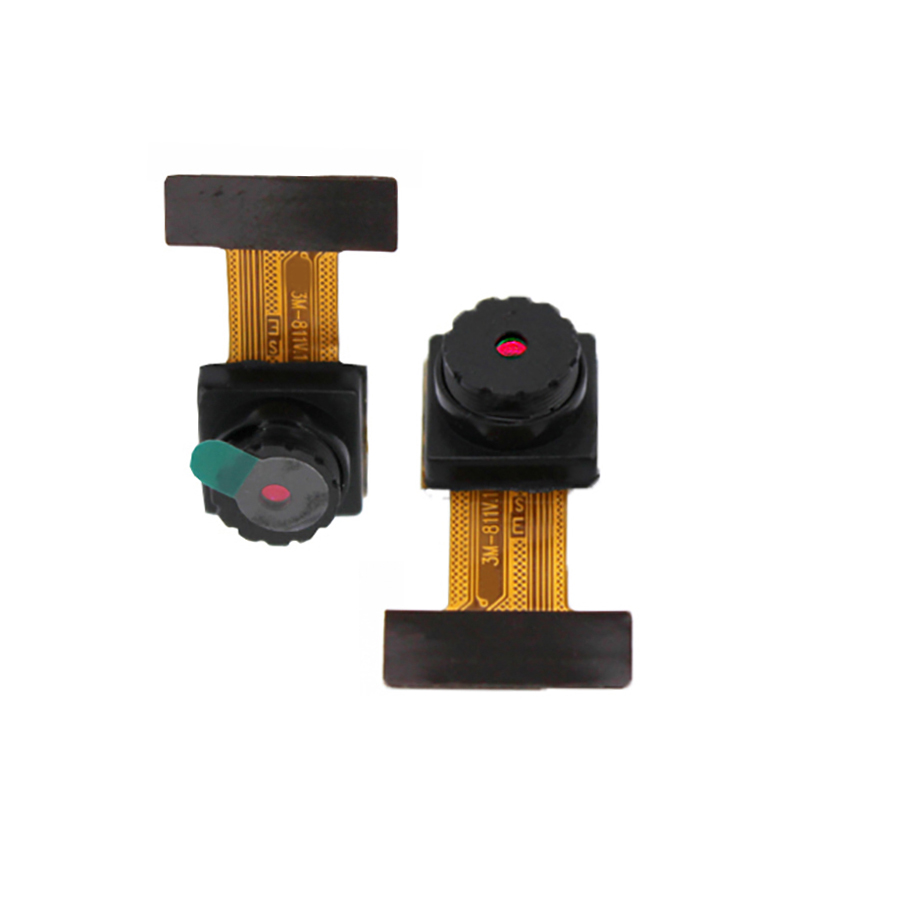

The JPEG Camera Module OV26400 comes with a standard serial SCCB interface and digital video port (DVP) parallel output interface, offering support for UXGA, SVGA and 720p with programmable controls for frame rate as well as video operations.
Camera Sensor Module MT9D111 GC2145 CMOS Module Camera is a 1/3.2 inch 2-megapixel CMOS image sensor with an integrated advanced camera system. The camera system features a microcontroller (MCU) and a sophisticated image flow processor (IFP) with a real-time JPEG encoder. It also includes a programmable general purpose I/O module (GPIO), which can be used to control external auto focus, optical zoom, or mechanical shutter.
2MP HD CMOS Sensor MT9D111 Camera Module is a 1/3.2 inch 2-megapixel CMOS image sensor with an integrated advanced camera system. The camera system features a microcontroller (MCU) and a sophisticated image flow processor (IFP) with a real-time JPEG encoder. It also includes a programmable general purpose I/O module (GPIO), which can be used to control external auto focus, optical zoom, or mechanical shutter.
