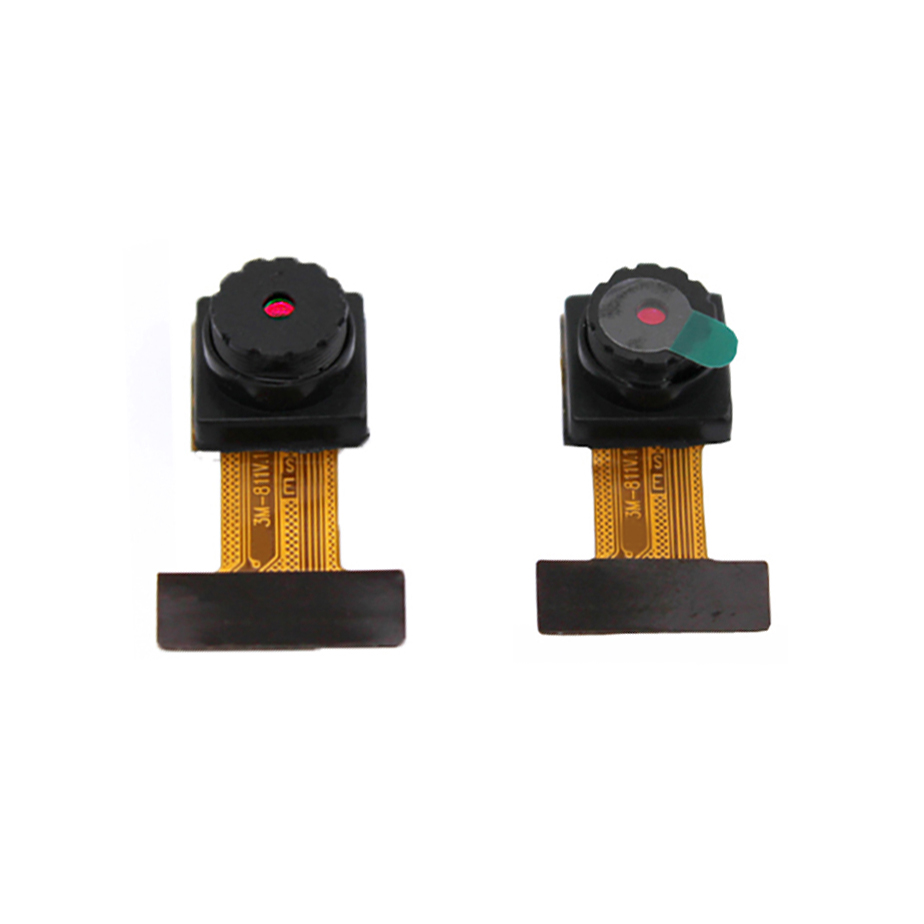

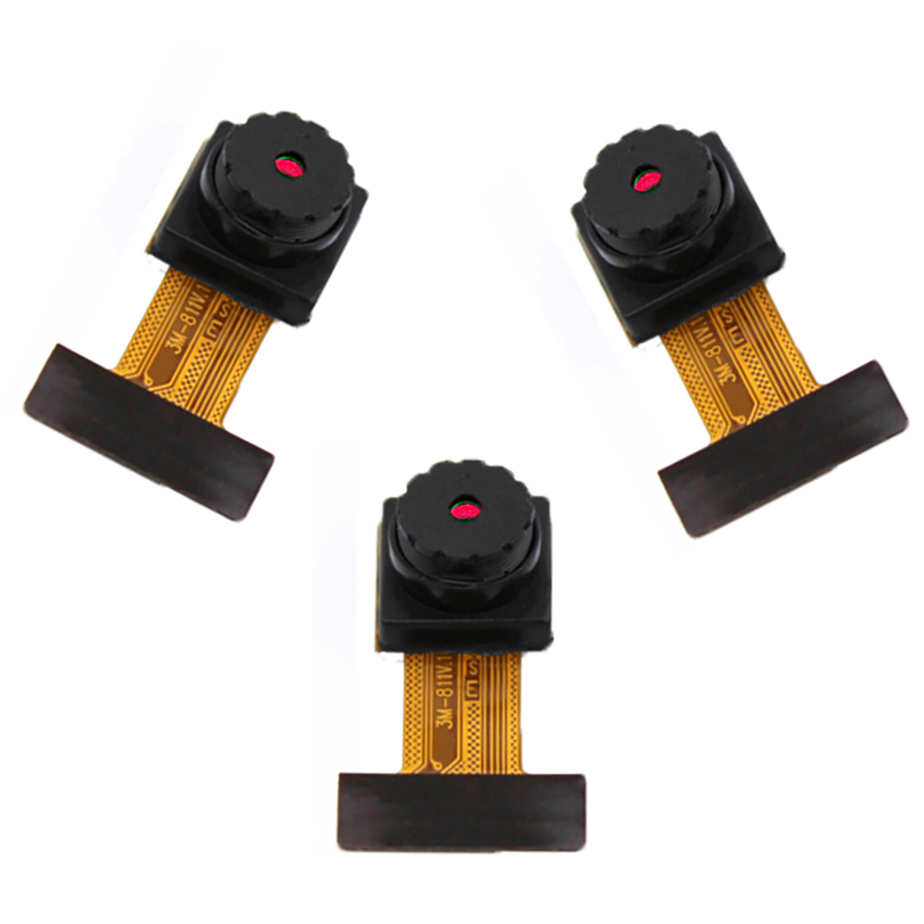

The JPEG Camera Module OV26400 comes with a standard serial SCCB interface and digital video port (DVP) parallel output interface, offering support for UXGA, SVGA and 720p with programmable controls for frame rate as well as video operations.
| Active array size | 1600x1200 | |
| Power supply | analog: | 2.6~3.0V |
| core: | 1.5 VDC±5% | |
| I/O: | 1.7~3.0V | |
| Temperature range | operating | -30℃ to 70℃ |
| stable image | 0℃to 50℃ | |
| Output formats |
YUV422/YCbCr422, GBR422, RGB565/555, 8/10-bit raw RGB data |
|
| Lens size | 1/4" | |
|
Maximum image transfer rate |
UXGA(1600x1200) | 15fps |
| SVGA(800x600) | 30 fps | |
| 720p(1280x720) | 30 fps | |
| Sensitivity | 1250mV/lux-sec | |
| Shutter | rolling shutter | |
| Scan mode | progressive | |
| Pixel size: | 2.2μm x 2.2μm | |
| Image area | 3590μm x 2710μm | |
| Package dimensions | 5035μm x4635μm | |
Mobile Phones
Notesbooks and webcams
Entertainment
V-VISION provides high quality camera modules with professional OEM design and manufacturing services to customers worldwide. We are carrying OmniVision, Sony, Samsung, Hynix, GalaxyCore... The main application areas: mobile phone,Digital Still Camera, laptop,DV, PDA/Handheld, Toy, PC Camera, Security Camera, Automotive Camera, tablet pc,the board, visual doorbell, medical system,smart home,industrial image recognition system, fingerprint identification system ...
Shenzhen V-Vision Technology Co.,Ltd is located in Shenzhen and is specialized in OEM camera module, with an experienced and professional team, we have exported our modules to many countries and regions all over the world, like North America,Mid East, Europe and Asia. Modules are well appreciated by their purchasers.
We always take "customers first, reputation first, feedback first" as our slogan. With strict quality control, we guarantee products quality and good price. We welcome customers, business associates and friends from all parts of the world to contact us and seek cooperation for mutual benefits. With good feedback from customers, we will build up a win-win business relationship with more and more customers from all over the world.
The important questions and answers which customers concerning:
1. Q: Can i order sample?
A-- Yes, we can accept sample order at first. Our moq for sample is 10pcs.
2. Q: Can you do customized camera module?
A-- Yes, we can do customized camera module. Like sensor, lens, size, height, imaging direction, flex cable, pinout, connector etc..
Please provide the detailed information of the camera module you need, then our technicist can update a specification drawing to you for final approval according. And we produce the camera based on this drawing.
3. Q: How long for production time?
A-- Normal camera module. For sample order, our delivery time is 3-5days. For 1k, it will take 10~12days.
Customized Camera Module. For sample order, our delivery time is 10~12days. 14~15days for bulk production.
4. Q: Can i put my company name on the flex cable of camera module?
A-- YES, we can print your company name, project name or anything you like on the flex cable for you.
5: Q: About shipment?
A-- DHL, UPS, FEDEX,TNT, Post, Air Mail....
6: Q: What's the payment terms?
A-- T/T, western union, payoneer, Alibaba trade assurance....
