IMX135 is 13-megapixel square-pixel array, diagonal size of 5.867mm (1/3.06-inch type).IMX135 Supports full-resolution 24fps (4-channel, 360MHz pixel rate), 720p/60, 1080p/30, and 1080p/60 video modes.Column-parallel A/D conversion and back-illuminated structure enable low-noise, high-sensitivity imaging with 30% higher light capture efficiency compared to traditional CMOS.
1. Basic Specifications
Sensor Type: Stacked (Back-Illuminated) CMOS with "Exmor RS" technology, integrating a signal-processing circuit beneath the pixel layer for enhanced performance and compact size.
Pixel Array: 13-megapixel square-pixel array, diagonal size of 5.867mm (1/3.06-inch type).
Output Formats: Supports full-resolution 24fps (4-channel, 360MHz pixel rate), 720p/60, 1080p/30, and 1080p/60 video modes.
2. Key Features
High-Speed Imaging: Column-parallel A/D conversion and back-illuminated structure enable low-noise, high-sensitivity imaging with 30% higher light capture efficiency compared to traditional CMOS.
Low Power Consumption: Operates at 2.7V (analog), 1.05V (digital), and 1.8V (I/O), reducing power usage by ~50% versus CCD sensors.
Advanced Functions:
Electronic shutter with variable integration time.
Pixel binning, cropping, and flip-readout modes.
On-chip CDS/PGA (Correlated Double Sampling/Programmable Gain Amplifier) and 10-bit ADC.
3. Interface & Integration
MIPI CSI-2 Interface: Configurable for 2- or 4-lane data output, optimized for smartphones and tablets.

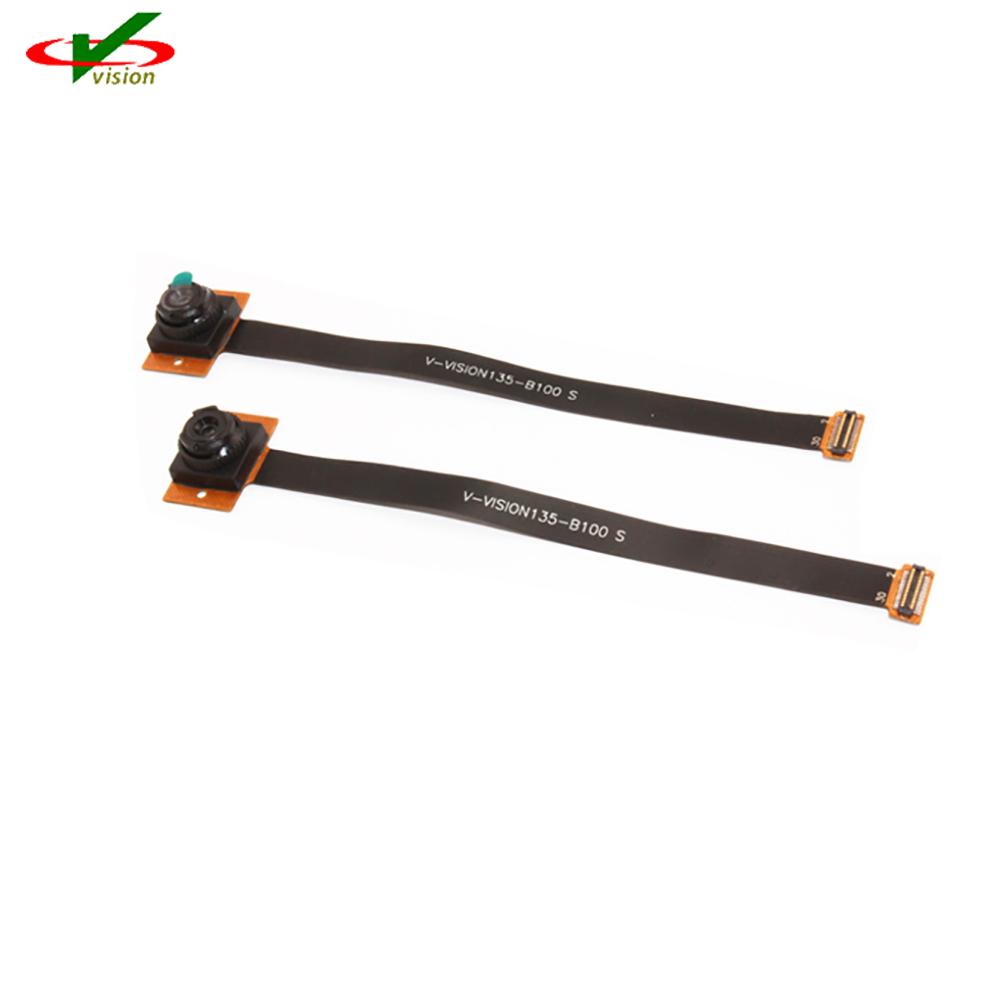

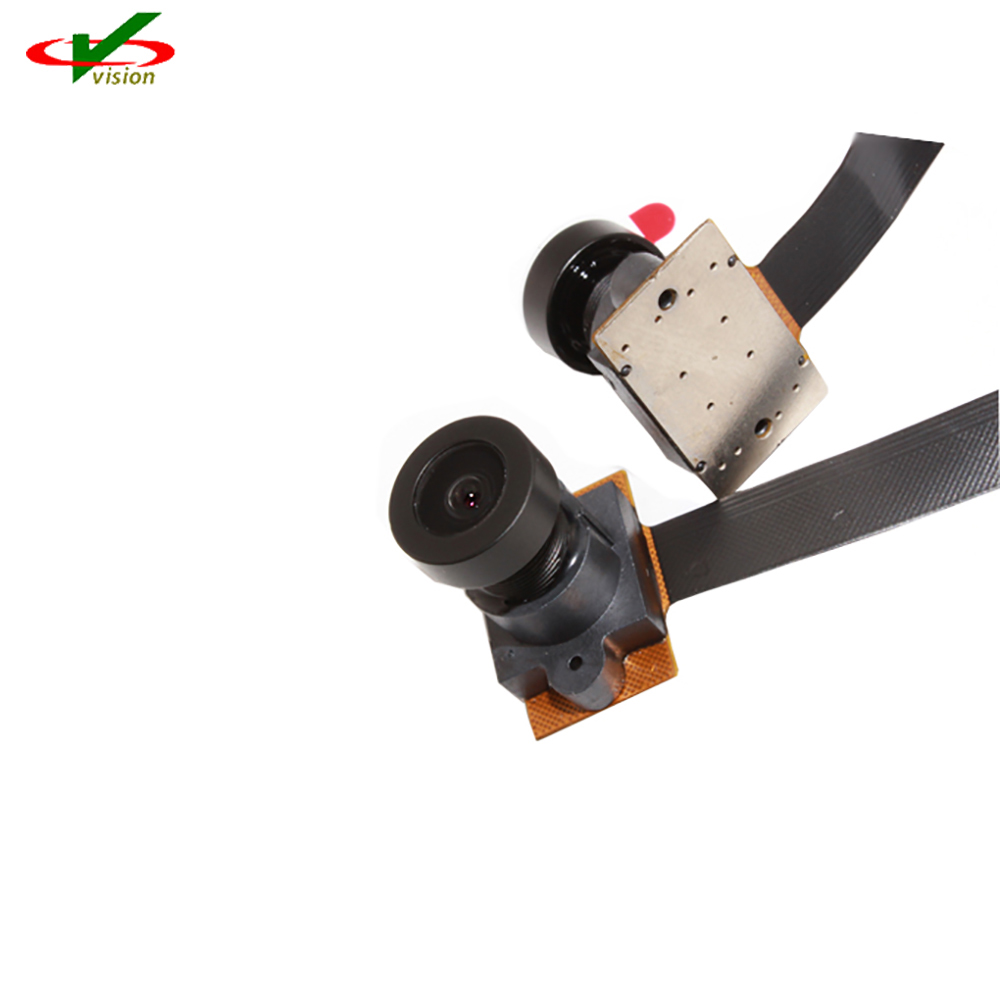

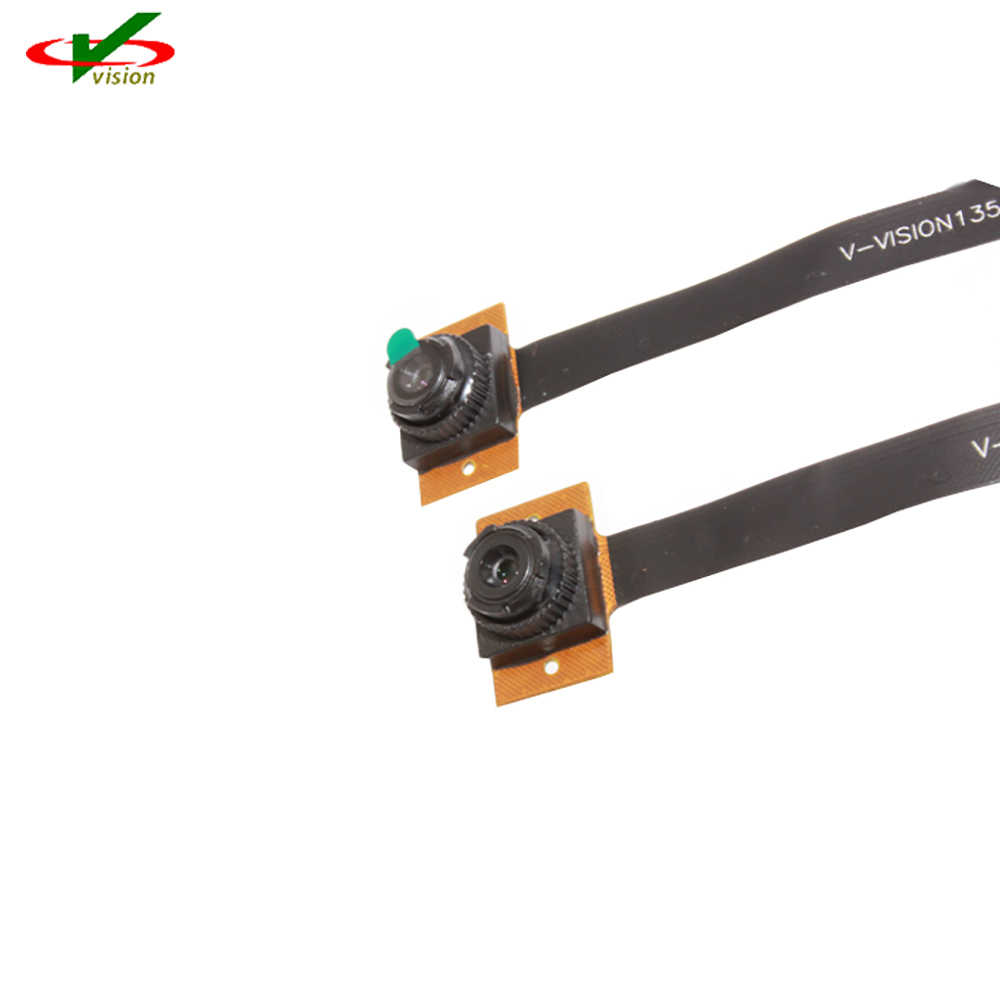

Module Compatibility: Designed for IU135F3-Z camera modules (e.g., OPPO Find 5), balancing cost and performance.
4. Market Context
Launch: Released in August 2012 as Sony’s first mass-produced stacked CMOS, pioneering the integration of back-illuminated structures with stacked logic layers.
Cost Considerations: Sensor-only pricing at ~¥1500 (2012 JPY), while full modules (sensor + lens) reached ~¥8000, influencing adoption in cost-sensitive devices like Xiaomi smartphones
The important questions and answers which customers concerning:
1. Q: Can i order sample?
A-- Yes, we can accept sample order at first. Our moq for sample is 10pcs.
2. Q: Can you do customized camera module?
A-- Yes, we can do customized camera module. Like sensor,lens,size,height,imaging direction,flex cable,pinout,connector etc..
Please provide the detailed information of the camera module you need, then our technicist can update a specification drawing to you for final approval according. And we produce the camera based on this drawing.
3. Q: How long for production time?
A-- Normal camera module. For sample order, our delivery time is 3-5days. For 1k, it will take 10~12days.
Customized Camera Module. For sample order, our delivery time is 10~12days. 14~15days for bulk production.
4. Q: Can i put my company name on the flex cable of camera module?
A-- YES, we can print your company name, project name or anything you like on the flex cable for you.
5: Q: About shipment?
A-- DHL,UPS,FEDEX,TNT,Post,Air Mail....
6: Q: What's the payment terms?
A-- T/T, western union, payoneer,Alibaba trade assurance....
