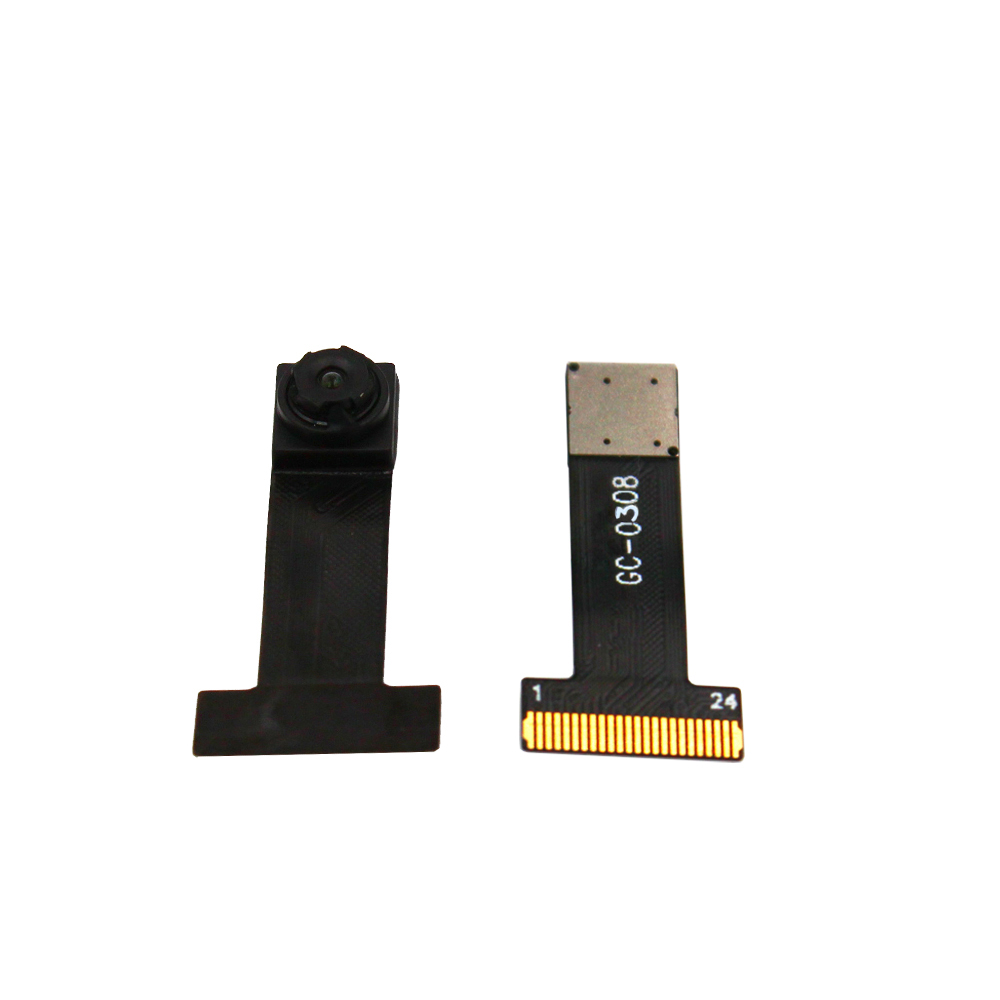

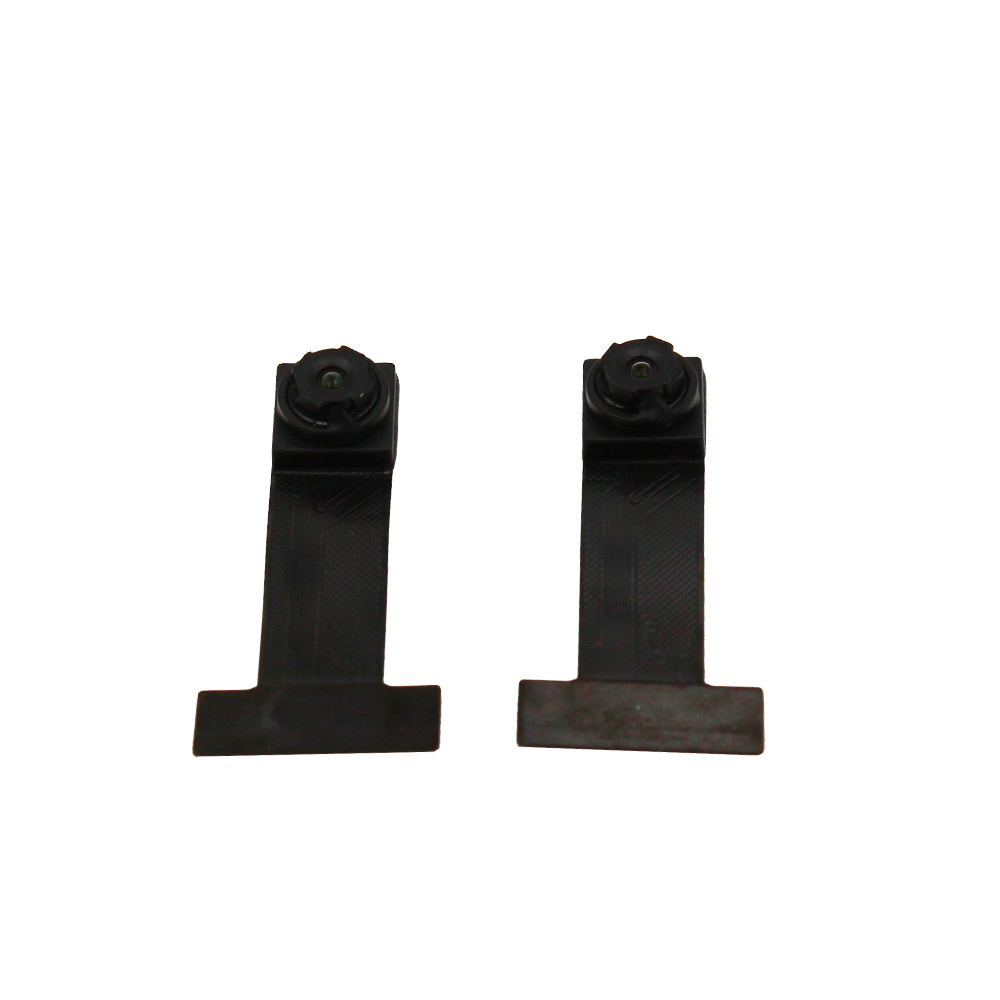

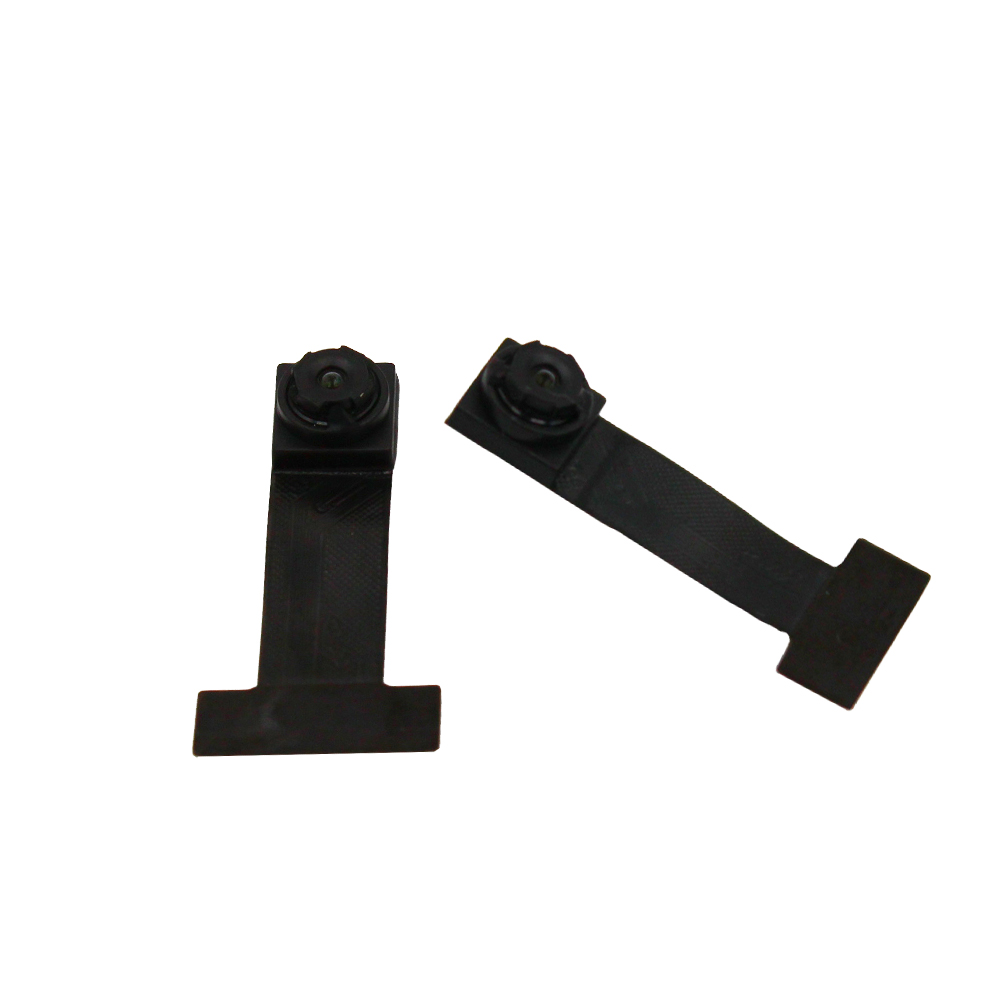

The Micro 0.3MP GC0308 Camera Module features 640V x 480H resolution with 1/6.5-inch optical format, and 4-transistor pixel structure for high image quality and low noise variations.
Micro 0.3MP GC0308 Camera Module delivers superior image quality by powerful on-chip design of a 10-bit ADC, and embedded image signal processor.
1. Standard optical format of 1/6.5 inch
2. Motion detect function
3. Bar code identification
4. Various output formats: YCbCr4:2:2, RGB565, Raw Bayer
5. Single power supply requirement (2.8v)
6. Windowing support
7. Horizontal /Vertical mirror
8. Image processing module
| Parameter | Typical value | |
| Optical Format | 1/6.5 inch | |
| Pixel Size | 3.4um x 3.4um | |
| Active pixel array | 648 x 488 | |
| ADC resolution | 10 bit ADC | |
| Max Frame rate | 30fps@24Mhz, VGA | |
| Power Supply | 2.7 ~ 3.3V, typical 2.8V | |
| Power Consumption |
70mW @ 30fps VGA, 10uA @ standby |
|
| SNR | TBD | |
| Dark Current | TBD | |
| Sensitivity | TBD | |
| Operating temperature: | -30~80℃ | |
| Stable Image temperature | -10~60℃ | |
| Optimal lens chief ray angle(CRA) | 25º | |
| Package type | CSP | |
1. Cellular Phone Cameras
2. Notebook and desktop PC cameras
3. Toys
4. Digital still cameras and camcorders
5. Video telephony and conferencing equipments
6. Security systems
7. Bar code reader
