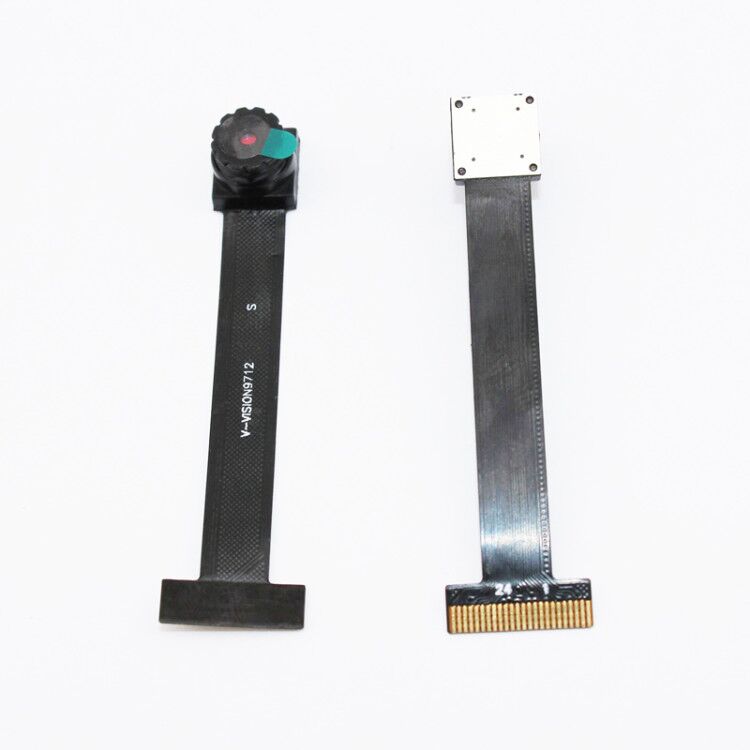

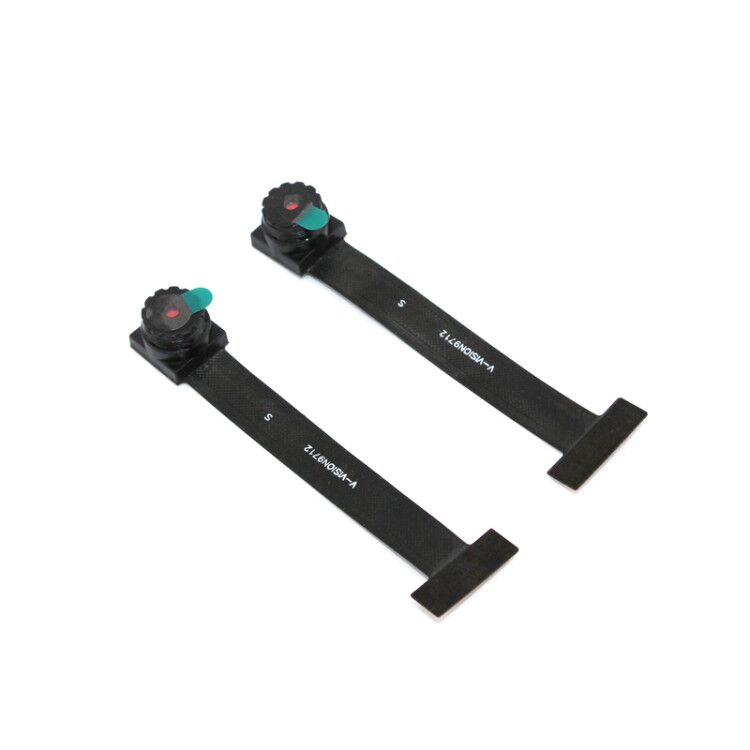

Camera Sensor Module GC2145 CMOS Module Camera is a 1/5 inch 2-megapixel CMOS image sensor with an integrated advanced camera system.GC2145 sensor is for mobile phone applications and digital camera products. GC2145 incorporates a 1616V x 1232H active pixel array, on-chip 10-bit ADC, and image signal processor.
High Quality 2MP CMOS GC2145 Sensor Module Core Specifications
Resolution: 1616 × 1232 active pixel array (UXGA) with a 1/5-inch optical format13.
ADC: Integrated 10-bit analog-to-digital converter for high-precision signal conversion14.
Output Interface: Supports DVP (Digital Video Port) and MIPI interfaces for flexible integration
| Parameter | Value | |
| Optical format | 1/3.2-inch(4:3) | |
| Full resolution | 1600x1200 pixel (UXGA) | |
| Pixel size | 2.8mx2.8m | |
| Active pixel array area | 4.73mmx3.52mm | |
| Shutter type | Electronic rolling shutter (ERS) with global reset | |
| Maximum frame rate |
15fps at full resolution, 30fps in preview mode, (800x600) |
|
|
Maximum data rate/ master clock |
80 MB/s 6 MHz to 80 MHz |
|
| Supply voltage | Analog | 2.5V-3.1V |
| Digital | 1.7V-1.95V | |
| I/O | 1.7V-3.1V | |
| PLL | 2.5V-3.1V | |
| ADC resolution | 10-bit, on-die | |
| Responsivity | 1.0/lux-sec(550nm) | |
| Dynamic range | 71dB | |
| SNR MAX | 42.3dB | |
| Power consumption | 348mW at 15 fps, full resolution | |
| 223mW at 30 fps, preview mode | ||
| Operating temperature | -30°C to +70°C | |
| Package | Bare die | |
• DigitalClarity™ CMOS imaging technology
• Superior low-light performance
• Ultra-low-power, low-cost
• Internal master clock generated by on-chip phaselocked loop oscillator (PLL)
• Electronic rolling shutter (ERS), progressive scan
• Integrated image flow processor (IFP) for single-die camera module
• Automatic image correction and enhancement, including lens shading correction
• Arbitrary image decimation with anti-aliasing
• Integrated real-time JPEG encoder
• Integrated microcontroller for flexibility
• Two-wire serial interface providing access to registers and microcontroller memory
• Selectable output data format: ITU-R BT.601 (YCbCr), 565RGB, 555RGB, 444RGB, JPEG 4:2:2, JPEG 4:2:0, and raw 10-bit
• Output FIFO for data rate equalization
• Programmable I/O slew rate
• Xenon and LED flash support with fast exposure adaptation
• Flexible support for external auto focus, optical zoom, and mechanical shutter
