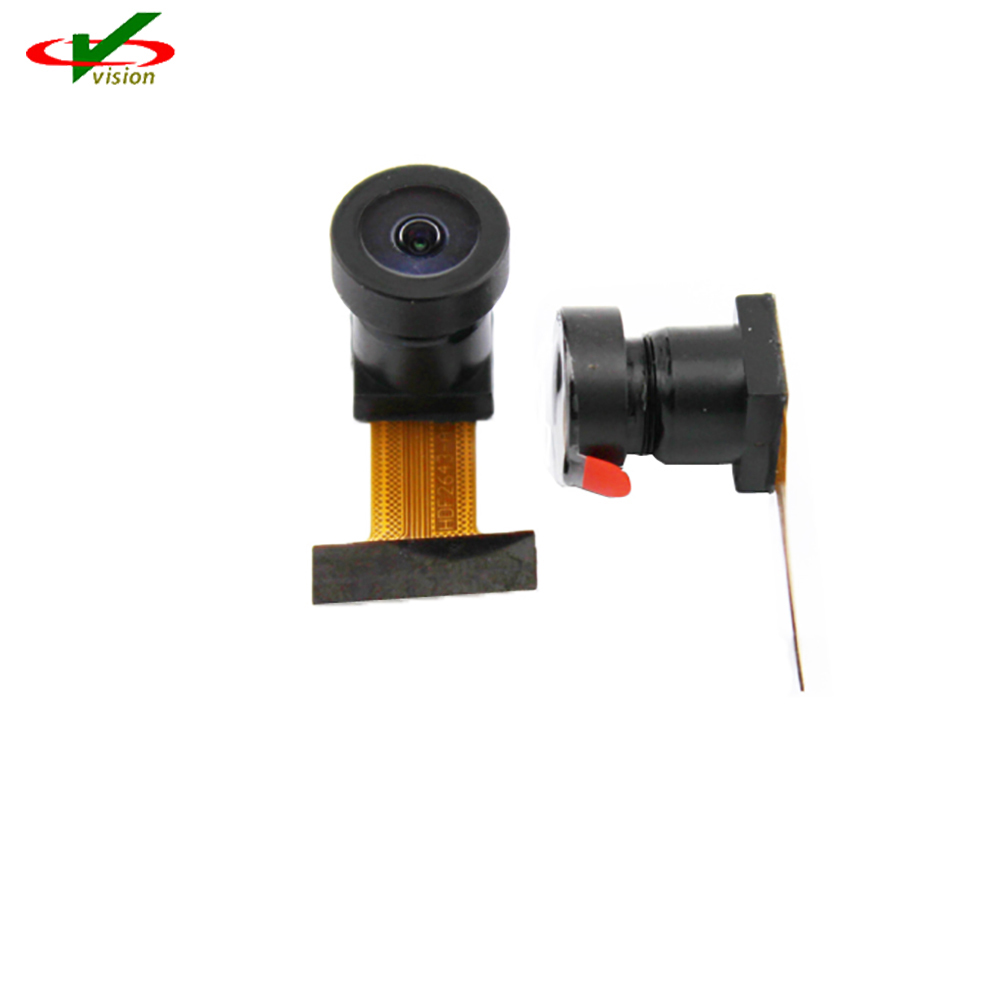

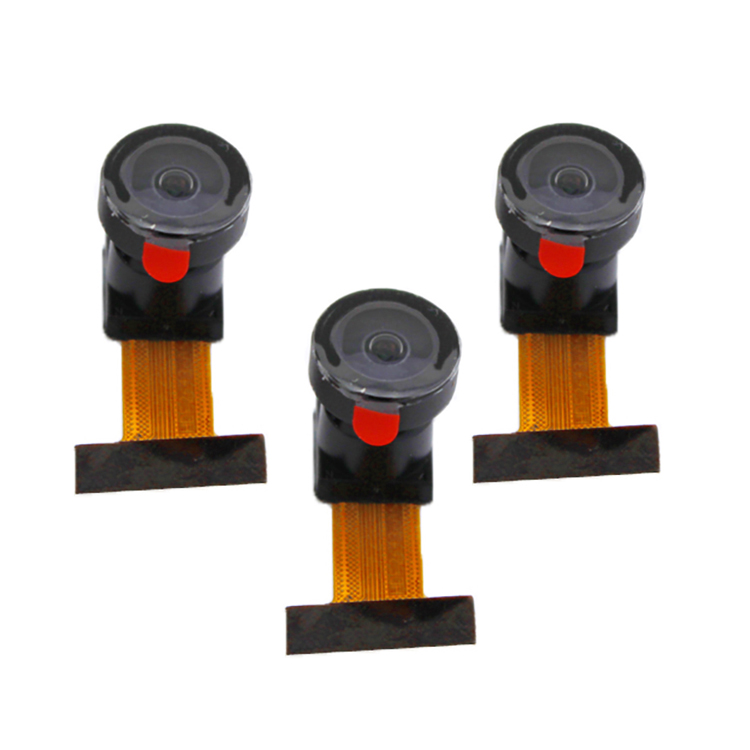

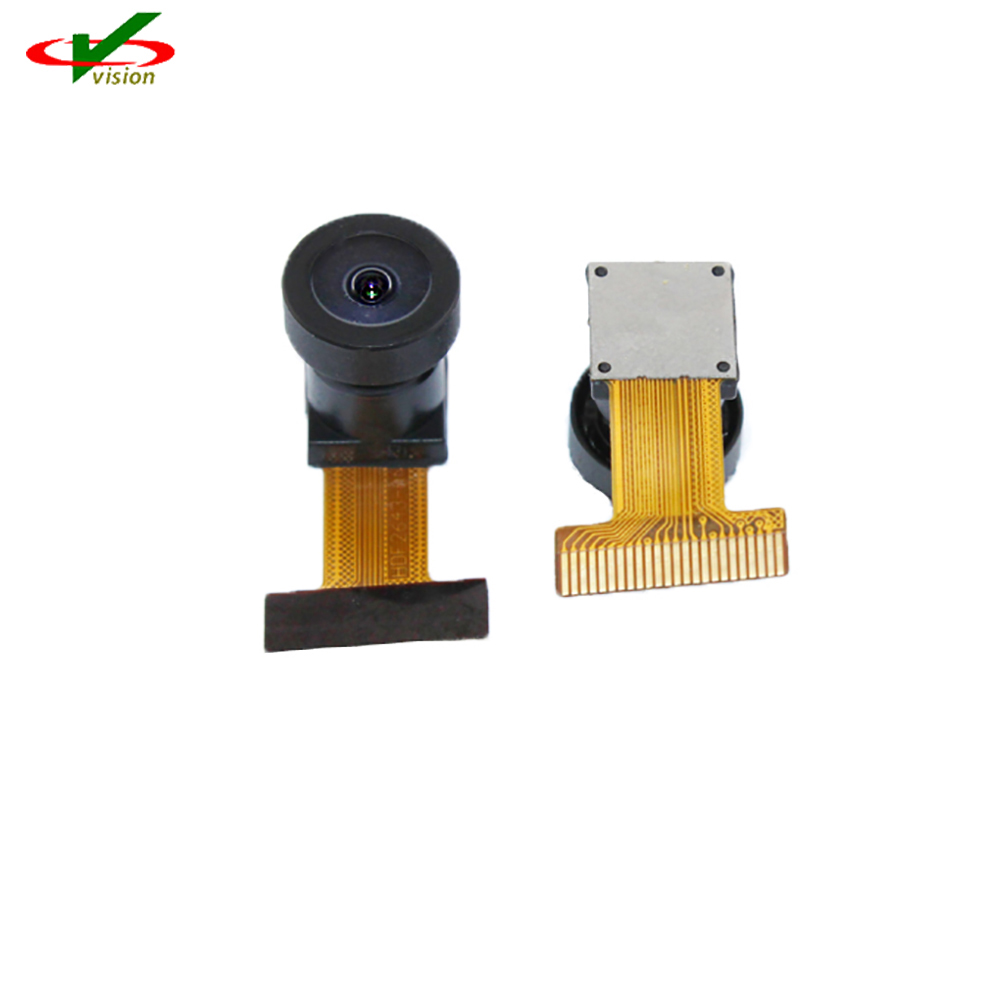

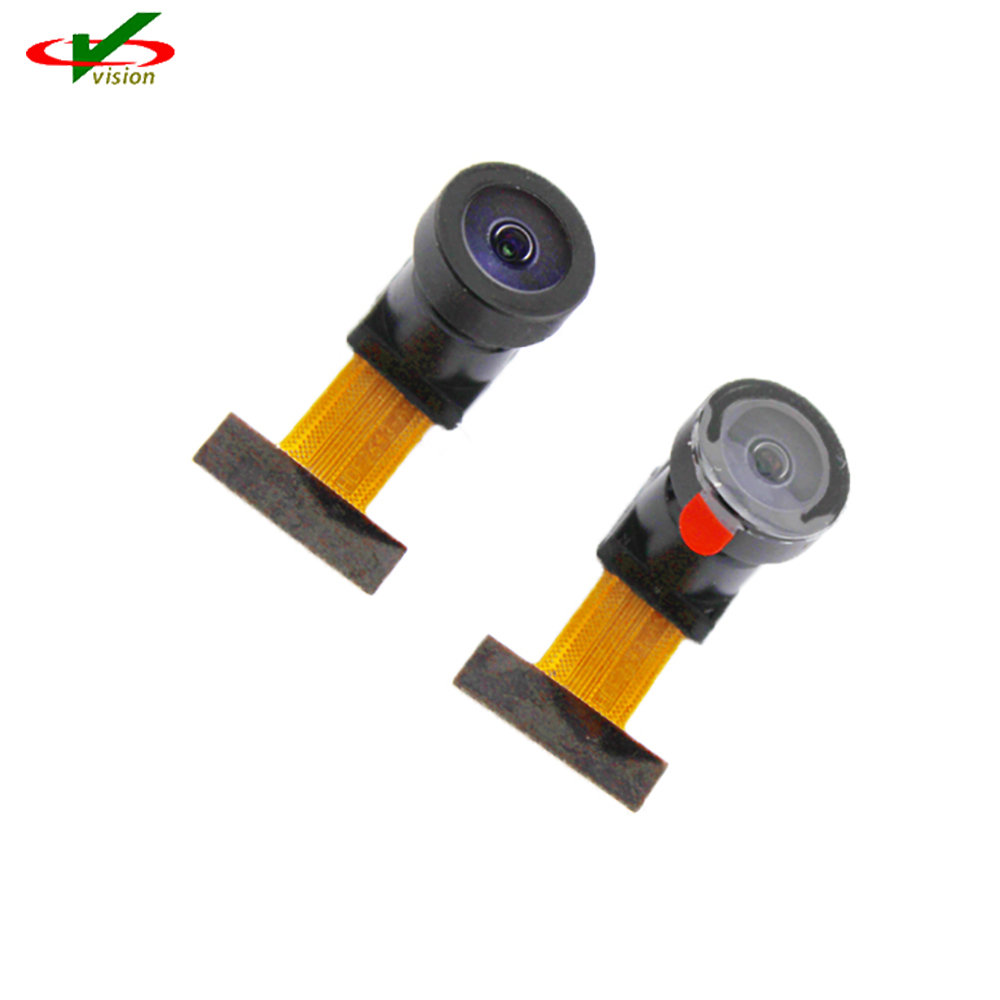

CMOS 2MP OV2643 Camera Module comes with a standard serial SCCB interface and digital video port (DVP) parallel output interface, offering support for UXGA, SVGA and 720p with programmable controls for frame rate as well as video operations.
| Active array size | 1624x1212 | |
| Power supply | analog: | 2.6~3.0V |
| core: | 1.5 VDC±5% | |
| I/O: | 1.7~3.0V | |
| Temperature range | operating | -30℃ to 70℃ |
| stable image | 0℃to 50℃ | |
| Output formats |
YUV422/YCbCr422, GBR422, RGB565/555, 8/10-bit raw RGB data |
|
| Lens size | 1/4" | |
|
Maximum image transfer rate |
UXGA(1600x1200) | 15fps |
| SVGA(800x600) | 30 fps | |
| 720p(1280x720) | 30 fps | |
| Sensitivity | 1250mV/lux-sec | |
| Shutter | rolling shutter | |
| Scan mode | progressive | |
| Pixel size: | 2.2μm x 2.2μm | |
| Image area | 3590μm x 2710μm | |
| Package dimensions | 5035μm x4635μm | |
Mobile Phones
Notesbooks and webcams
Entertainment
